Brewhouse System Unit

Brewhouse System Unit

Brewhouse system Configuration
Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
Hot water tank and cold water tank for optional in special combinations
Infusion or decoction brewing methods are designed exactly
Stainless steel or copper cladding are popular
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump
All pipings and fittings

Some Combinations of Brewhouse System

No.1---Two Vessel Brewhouse
Structure: Mash/Lauter tun, Kettel/Whirlpool tun
Application:200L-2000L(2-15BBL)

No.2---Combined Two Vessel Brewhouse
Structure: Mash/Lauter tun & Hot water tank, Kettel/Whirlpool tun
Mash/Lauter tun & Whirlpool tun, Kettle tun
Application:500L-1000L(4-10BBL)

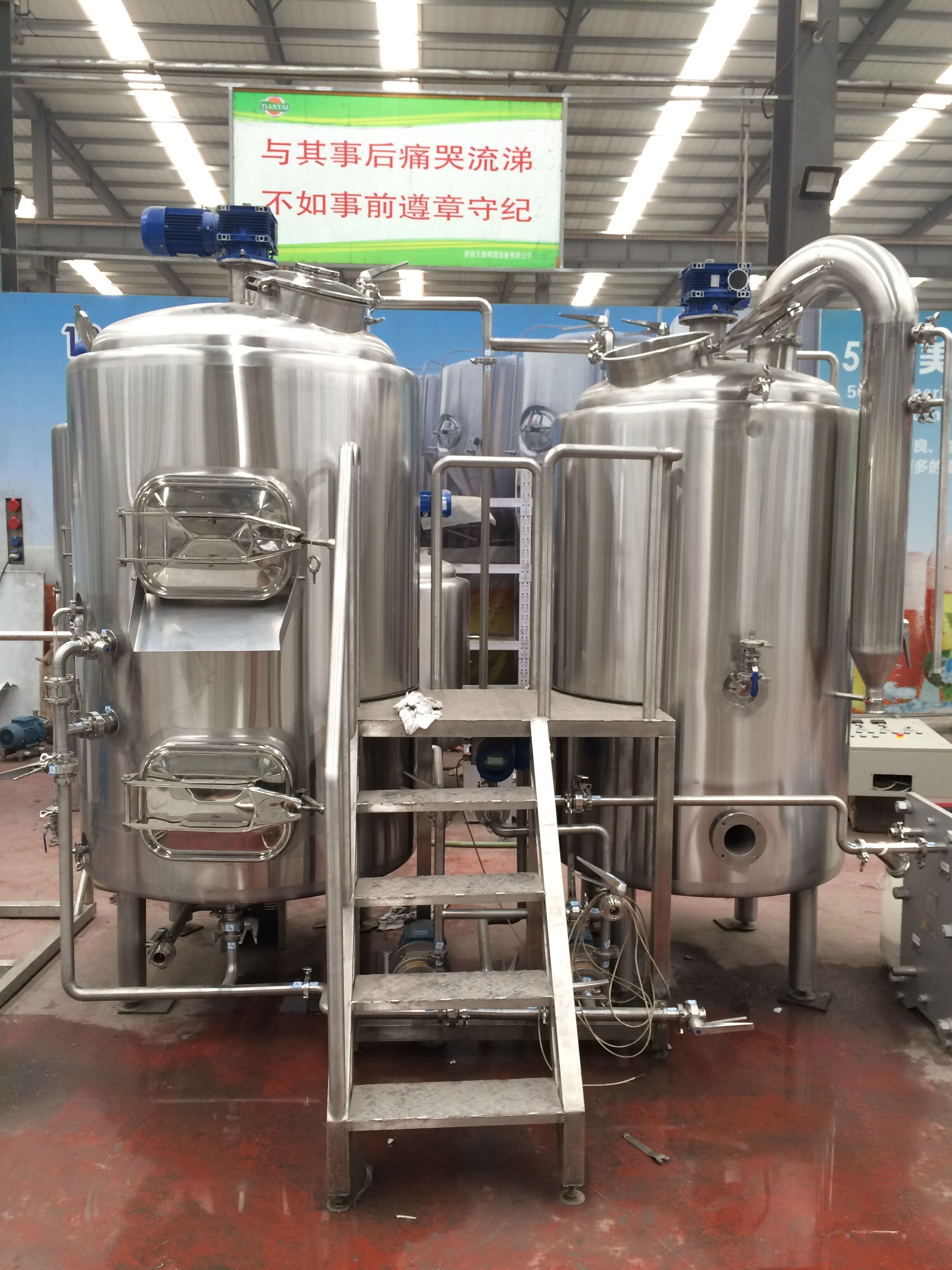

No.3---Three Vessel Brewhouse
Structure: Mash/Lauter & Whirlpool tun+Kettle+Hot liquor tank
           Mash/Lauter tun+Kettle/Whirlpool tun+Hot liquor tank
           Mash/Kettle tun+Lauter tun+Whirlpool tank
           Mash tun+Lauter tun+Kettle/Whirlpool tun
           Mash tun+Lauter & Whirlpool tun+Kettle
Application:1000L-3500L(10-30BBL)
