Ceramic Band Heater with Electric Connector

Ceramic Band Heater with Electric Connector

For a 100L beer brewery system, it is always the electric heating type. But if the kettle and whirlpool is combined, the traditional heating pipe will prevent the whirlpool. Also if there is a rake in the mash/lauter tun, it can also does not work.
Then the ceramic band heater is a good way which can put outside the interior layer of the brewing tanks!


1 Introduction for Ceramic Band Heating Element
Ceramic Band Heating Element is designed and manufactured out of 40 years of experience, for superior performance and life expectancy. Primarily used for Plastic Processing machinery, depending upon applications, these heaters come with outer heat saving insulation covers, which provides the best combination of physical strength, high emissivity & good thermal conductivity to heat cylindrical parts, good for sheath temperature up to 500°C along with Energy Saving.

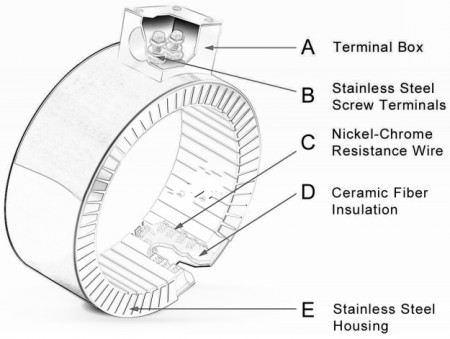

2 Features of Ceramic Band Heating Element

brewhouse heating
Industrial Heater Ceramic Band Heating Element
Resistance Wire NiCr 80/20
Sheath 304 stainless steel
Insulation ceramic
Terminal ceramic terminal/flange/lead/terminal box and customized
Heater Voltage 120V 220V 230V 240V 380V 480V standard
(other voltages available on request)
Wavelength range 2-10 microns
Operating Temperature Up to 300°C to 700°C
(572°F - 1292°F)
Operating Life-Up 20,000 hrs
Radiation distance 100 mm to 250 mm



3 Features for Ceramic Band Heating Element
• Energy efficient
• Energy saver
• Highly flexible
• Durable
• Maintains heat
• Provide uniform heat distribution
• CSA, CE and UL certified


4 Applications for Ceramic Band Heating Element
• Injection molding
• Blow-molding
• Plastic extrusion
• Container, pipe, or tank heating
• Process applications

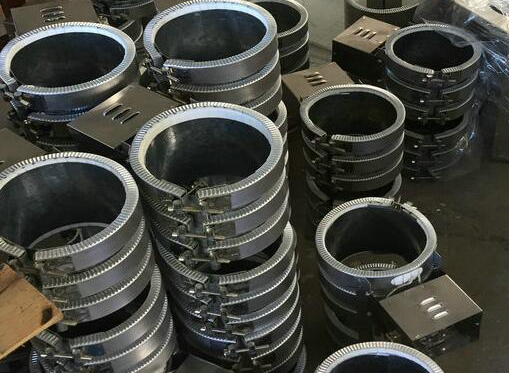

5 Photos for Ceramic Band Heating Element


brewhouse heating
What do you think of this? Did you use this kind of heating before?
Welcome for the comments.
Thanks for your reading!
Edited by Ivy
