As you know, stainless steel 304 is used a lot in food area.
For the brewing equipment, it is also favored by beer equipment manufacture
and also the brew masters. Many people test stainless steel by a magnet.
So Is stainless steel 304 magnetic?
There are several families of stainless steels with different physical properties.
The magnetic properties of stainless steel are very dependent on the elements
added into the alloy. A basic stainless steel has a ‘ferritic’ structure and is magnetic,
formed from the addition of chromium – it can be hardened through the addition
of carbon, making it ‘martensitic’. However, the most common stainless steels are
‘austenitic’ – these have a higher chromium content and nickel is also added.
It is the nickel which modifies the physical structure of the steel and makes
it theoretically non-magnetic.

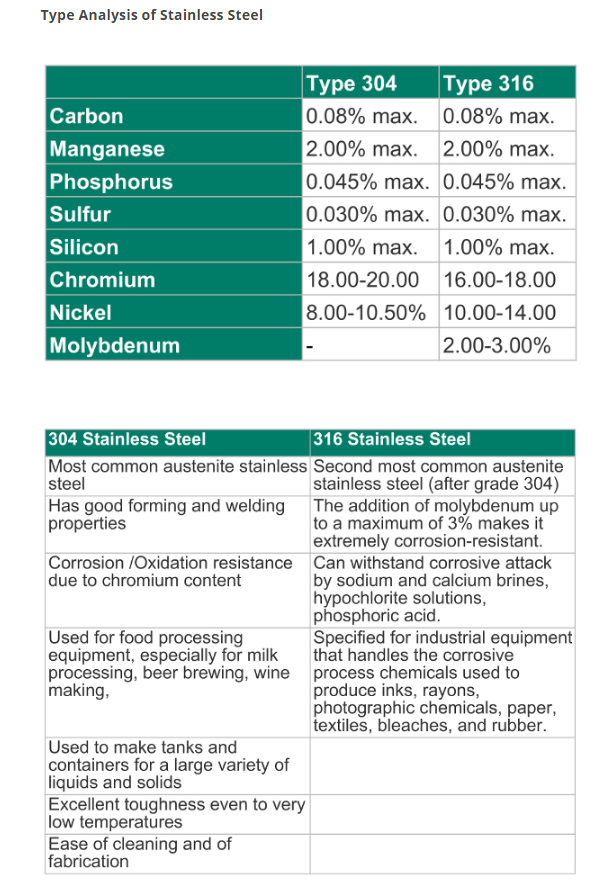

304 stainless steel contains chromium (min. 18%), and nickel (min. 8%).
It is an austenite steel and is only slightly responsive to magnetic fields.
It also contains 18 – 20% chromium and 8-10.50% nickel, and lesser quantities
of some other elements.
316 stainless steel is a molybdenum-alloyed steel. The fact that it is also negligibly
responsive to magnetic fields means that it can be used in applications
where a non-magnetic metal is required.
It also contains a number of other elements in varying concentrations.
Transformation from non-magnetic to magnetic phases
As both 316 and 304 stainless steels are austenitic, when they cool, the iron remains in
the form of austenite (gamma iron), a phase of iron which is nonmagnetic.
The different phases of solid iron correspond to different crystal structures.
In other alloys of steel, this high-temperature phase of iron transforms to a magnetic
phase when the metal cools. The presence of nickel in the stainless steel alloys stabilizes
austenite against this phase transition as the alloy cools to room temperature.
This corresponds to a somewhat larger magnetic susceptibility than we might expect
for other nonmagnetic materials, but is still well below what might be considered magnetic.
However, this does not mean that you should expect to measure such a low susceptibility
on any item of 304 or 316 stainless steel that you encounter. Any process which can
change the crystal structure of stainless steel can cause austenite to be converted to
the ferromagnetic martensite or ferrite forms of iron. These processes include cold
working and welding. It is also possible for austenite to spontaneously convert to
martensite at low temperatures. To complicate matters further, the magnetic
properties of these alloys depend on the alloy composition. Within the allowed
ranges of variation of Ni and Cr, significant differences in magnetic properties
may be observed for a given alloy.
Practical implications for removal of stainless steel particles
Both 304 and 316 stainless steel possess paramagnetic characteristics.
As a result of these properties small particles (approx 0.1-3mm dia sphere for example)
can be attracted to powerful magnetic separators positioned in the product stream.
Depending upon their weight and specifically their weight ratio to magnetic attraction,
these small particles will be held to the magnets during the production process.
These can then be removed during the magnet cleaning operation.
From our experience 304SS small particles are more likely to be held in the
flow than 316 SS particles due to its slightly more magnetic nature.
So we are using the acid wash and passivation to remove the irons.
And it can also form a protect layer for the inside.
In a conclusion: Stainless steel 304 is also a slight magnetic so do not worry.
A best way to test it is by the analyze its components.
Thanks for reading.
