How is false bottom constructed

2018-01-13 11:22

How is false bottom constructed?


The false bottom is installed in the mash tun to provide support for the grain bed during the mashing in process and to retain the spent grain after runoff is complete. During the runoff,however, most of the separation of wort from grains occurs in the grain bed itself. Ideally ,the grain bed floats several inches above the false bottom.in larger vessels,the false bottom is constructed as a series of interlocking plates that fit together to cover the entire area of vessel bottom.smaller vessels may have only two such plates.the design of the slots in the false bottom is important. They must be narrow enough to prevent large particles from passing through yet wide enough not to become blocked and prevent flow altogether.It is a good idea for the slots or holes to be wider on the under-side than on the top side to prevent particles that pass through the screen from plugging the gaps.some manufacturers mill slots into the screens and mill the underside wider .others choose to construct the screens with V-shaped or wedge,wire laid out in strips separated by an appropriate distance.

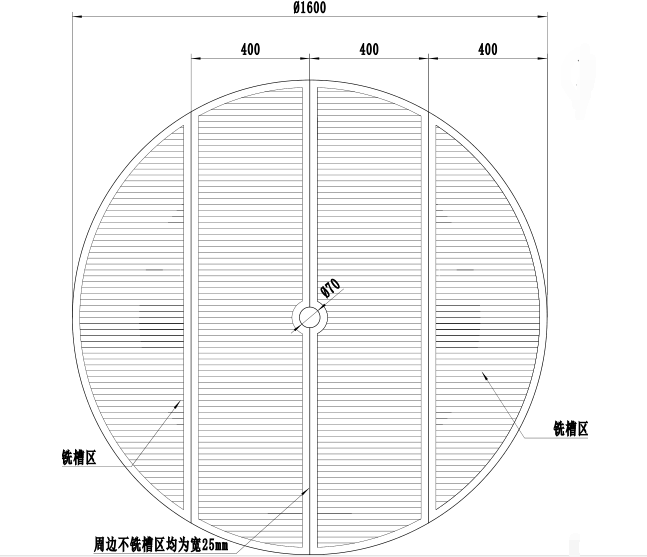

Here is one reference drawing of false bottom:



Thanks for your reading.
Edited by Helen
